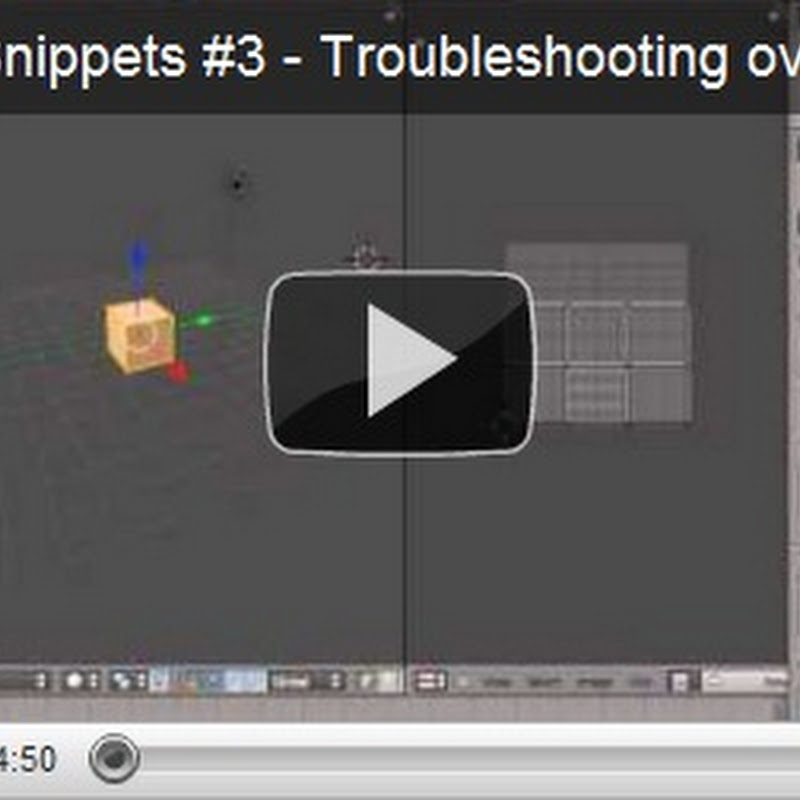

SunBurn Snippets #3 - Troubleshooting overly bright models in the editor

Following on again after the last snippet on Light maps, here’s another common issue you can sometimes face, usually with simpler models but also with any model setup incorrectly for lighting.

Some models when imported into blender take on a glowing type effect where they are not casting shadows, all faces or most faces are just bright as if lit from all angles, this is actually not far from the truth.

What the engine needs is a lightmap (Second UV Channel) to be completely UNIQUELY mapped, meaning each and every face must have it’s own area on the lightmap texture channel.

For a cube this is the difference between:

image image

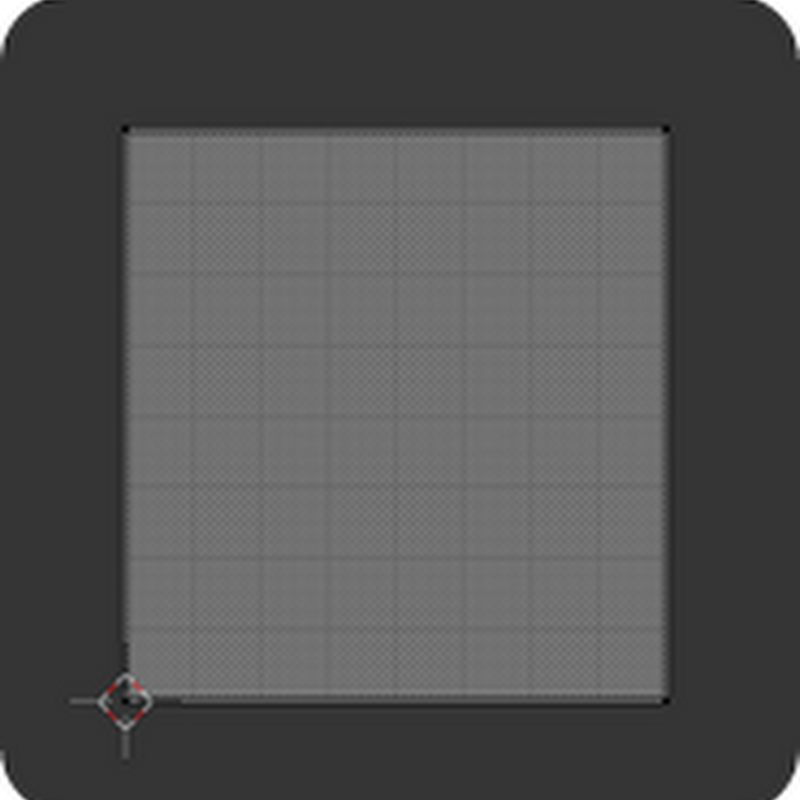

A single faces UV texture that would map to all faces
and This
A uniquely mapped UV texture with each face having it’s own area

If you have your UV channel setup like the view on the left, then when SunBurn calculates the lighting for each face of the model it will multiply this data solely on this one area for each face ad for each light.  OVERBURN Winking smile

So simply re-project your UV map in your tool of choice and off you go.
